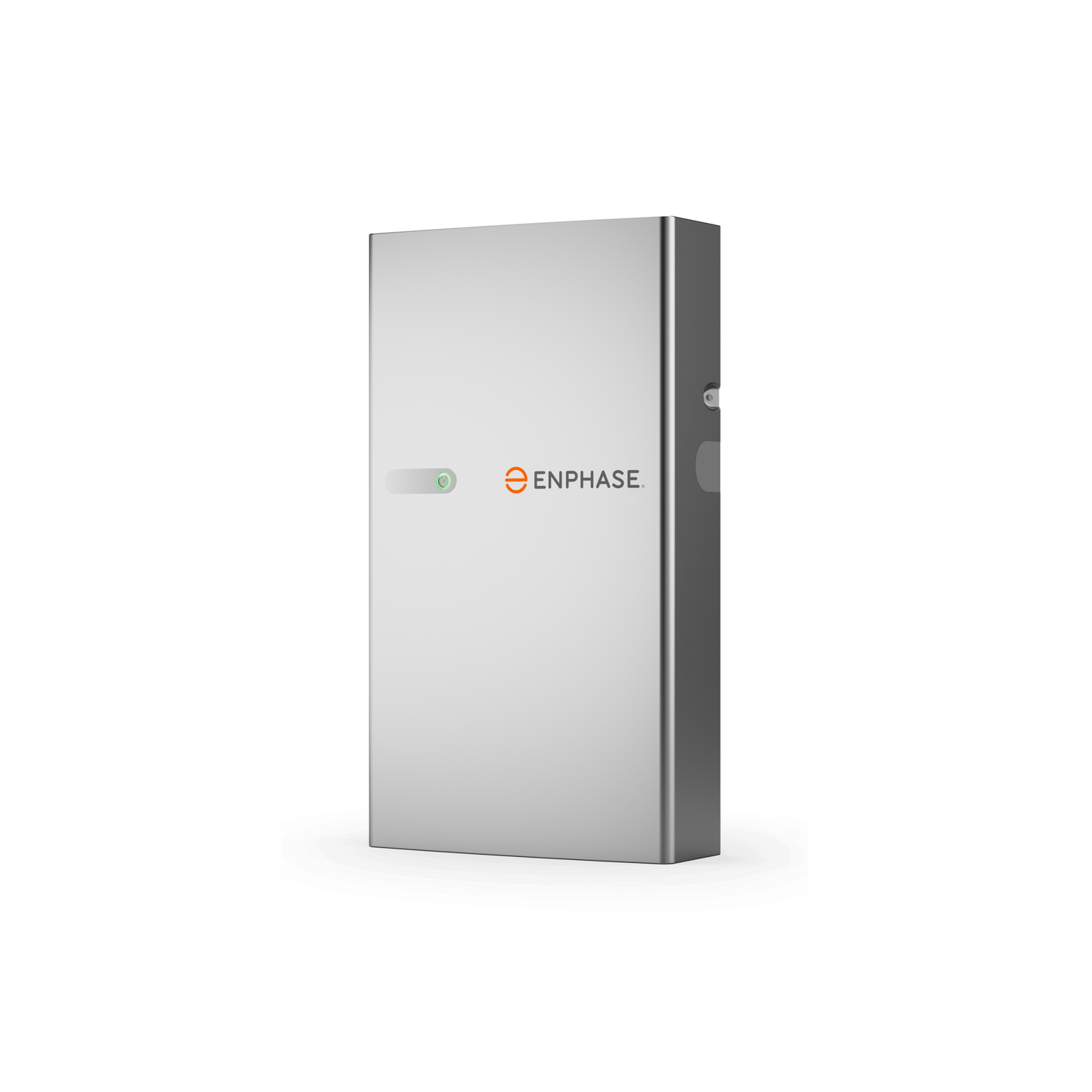

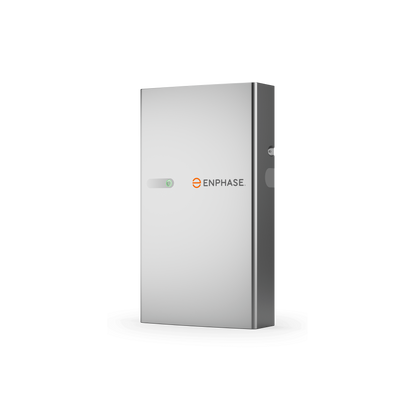

IQ BATTERY 5P

An all-in-one, AC-coupled storage system, the IQ Battery 5P is the most powerful Enphase battery yet.

It has a total usable energy capacity of 5.0 kWh, and features six embedded grid-forming microinverters and 3.84 kW of continuous power, as well as peak output power of 7.68 kW for 3 seconds and 6.14 kW for 10 seconds.

Easily integrating with the Enphase Energy System, the IQ Battery 5P can provide backup capability when installed with IQ System Controller 3/3G, and is supported by a 15-year limited warranty. Its modular design means installers can quickly design the right system size to meet the needs of their customers.

Fully integrated AC battery system
Six embedded IQ8D-BAT Microinverters
15-year limited warranty
Field-replaceable components
Stable lithium iron phosphate (LFP) chemistry for maximum safety and longevity
Cools passively with no moving parts or fans
Uses Control cabling for fast and consistent connection
Quick and easy installation
Remote software and firmware upgrades
Grid-forming capability for backup operation
Offers homeowners remote monitoring and control from the Enphase App
Supports backup, self-consumption, and time of use (TOU) modes.

What’s in the box:
IQ Battery 5P base unit
IQ Battery 5P cover
Wall mounting bracket
