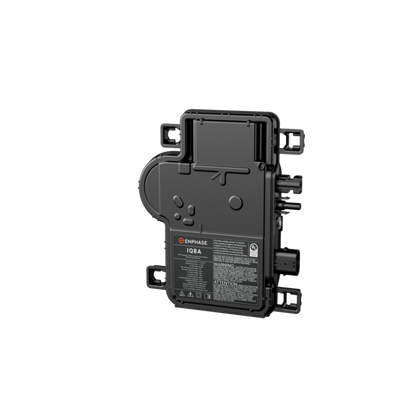

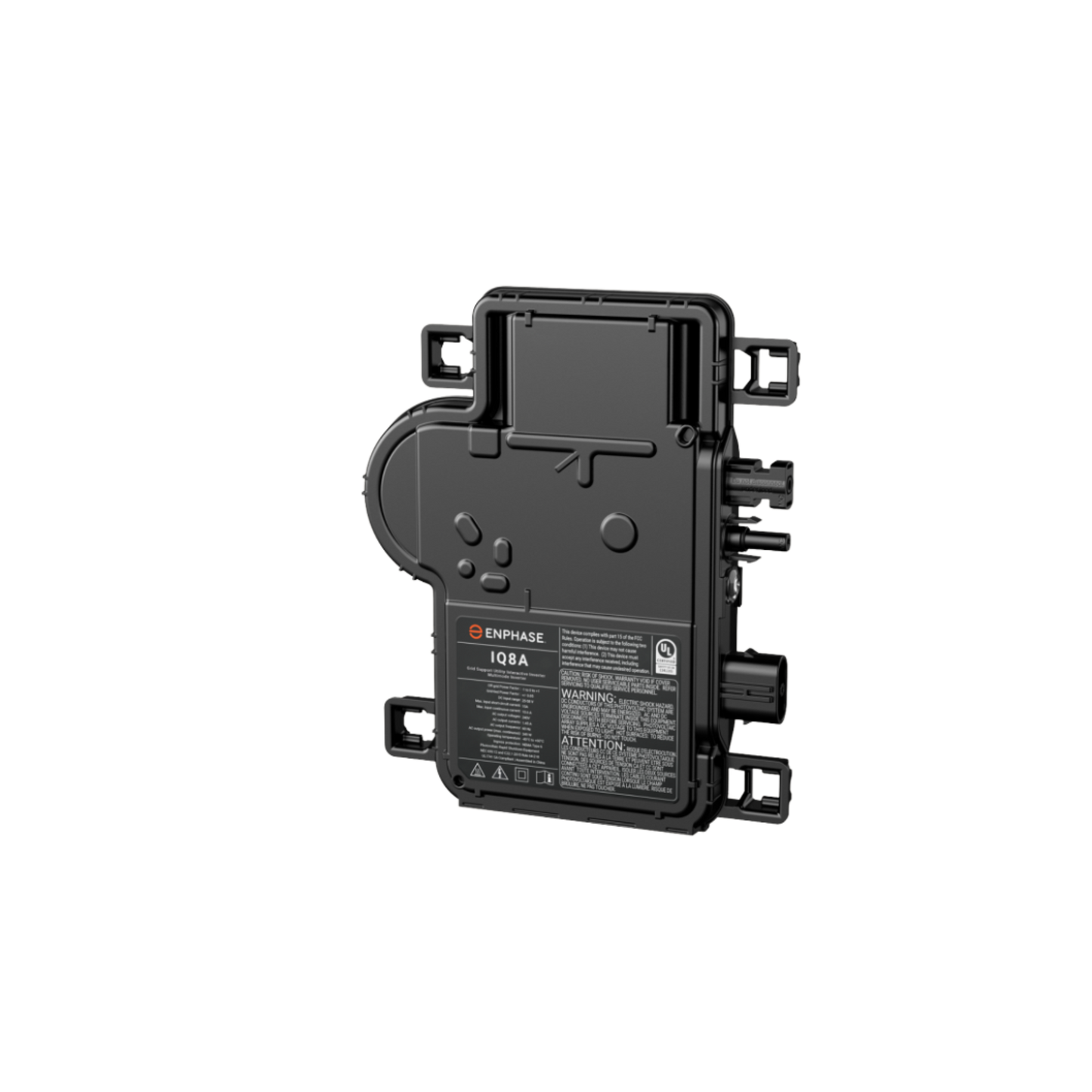

IQ8AC MICROINVERTER (IQ8AC-72-M-US)

The Enphase IQ8AC-72-M-US is a cutting-edge microinverter designed for residential and commercial solar energy systems. It is part of the Enphase IQ8 Series, which represents a significant advancement in energy management technology. The IQ8AC-72-M-US microinverter is equipped with split-phase power conversion capability, allowing it to efficiently convert DC power to AC power. This innovative microinverter operates in grid-tied mode and is designed to support 240 V split-phase and 208 V single-phase systems in the United States. It is specifically engineered to work with a range of PV modules, including 54-cell/108 half-cell, 60-cell/120 half-cell, 66-cell/132 half-cell, and 72-cell/144 half-cell modules, provided they are electrically compatible. In addition, the IQ8AC-72-M-US microinverter supports a lower MPPT voltage range of 28VDC to 45VDC, distinguishing it from other microinverters in the IQ8 Series.

The Enphase IQ8AC-72-M-US microinverter is a key component of the Enphase Energy System, integrating seamlessly with the IQ Battery, IQ Gateway, and the Enphase App monitoring and analysis software. This integration allows for comprehensive monitoring and control of the solar energy system, enhancing overall energy management. The microinverter is built with advanced 55 nm technology, featuring a proprietary application-specific integrated circuit (ASIC) that enables it to operate in both grid-tied and off-grid modes. This ASIC is designed with high-speed digital logic and rapid response times to changing loads and grid events, which in turn reduces constraints on battery sizing for home energy systems. The IQ8AC-72-M-US microinverter is backed by extensive testing, with more than one million cumulative hours of power-on testing, and comes with an industry-leading limited warranty of up to 25 years, reflecting its exceptional reliability and durability.
Shipping Dimensions
1 Pallet (42 Boxes/756 Pieces) = 40x48x84 @ 2200 lbs
1 Box (18 Pieces) = 16x19x11 @ 46 lbs
1 Piece = 7x10x1 @ 2.25 lbs
