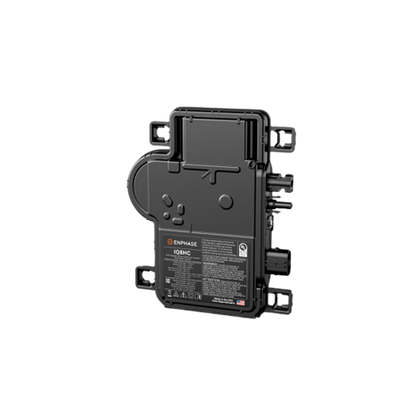

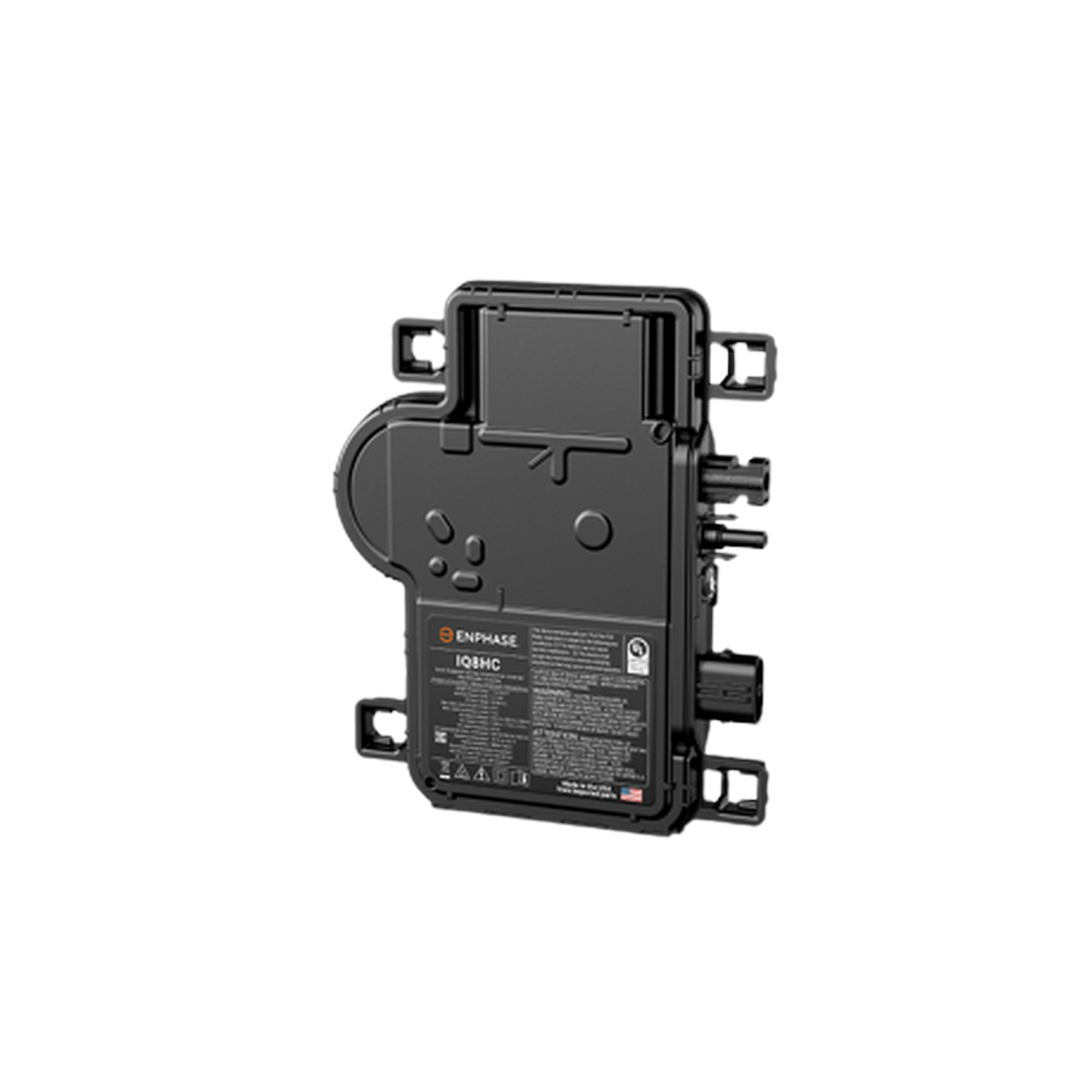

IQ8HC DOMESTIC MICROINVERTER (IQ8HC-72-M-DOM-US)

Enphase newest IQ8 Microinverters are the industry's first grid-forming microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. The brain of the semiconductor-base microinverter is enphase's propriety application-specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off0drid modes. this chip is built in advance 55nm technology with high speed digital logic and has super-fast response times to changing loads and grid events. alleviation constraints on battery sizing for home energy systems.

Max Continuous Output Power: 380 VA
Recommended PV module input power: 320-540+ W
MPPT Range: 29.5V – 45V
Min/Max start voltage: 22V / 58V
97.% CEC Efficiency (@ 240VAC)
