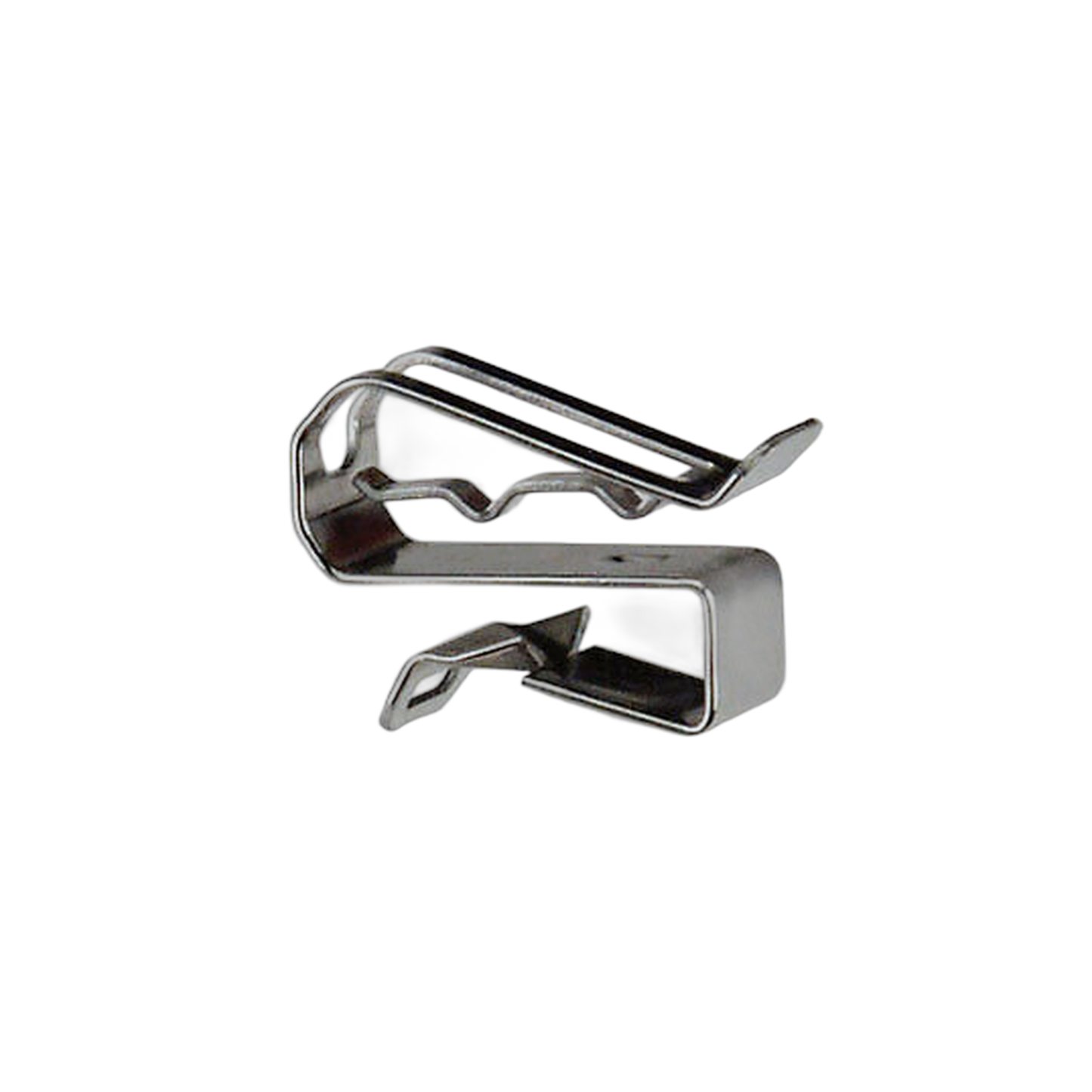

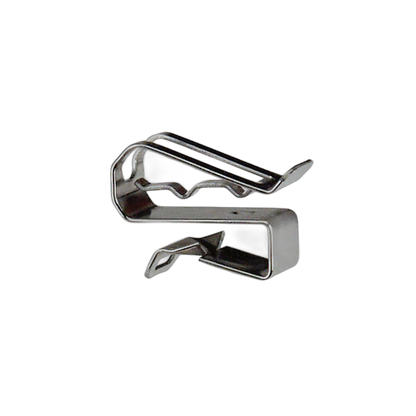

SUNRUNNER PV CABLE CLIP

Heyco’s SunRunner and SunRunner
EZ’s robust "double-compression"
design securely holds from (1)
12 gauge USE-2 to (2) 10 gauge
PV-1000V solar wires.
• Also for use with other cables from
.20 ̋ (5,1 mm) to .33 ̋ (8,3 mm)
in diameter.
• Heyco SunRunner Clips are designed to
provide a better method for PV module
wire management and may be used
wherever single or multiple cable
management is needed.
• Smooth clip edges prevent damage to
cable insulation.
• Locking tabs securely fasten clips to
module extrusions, or other panels.
• Generous lead-in for installation
without tools.
• Screwdriver slot for easy removal or
movement of clips if necessary.
• Neatly dresses cables on PV panel
frames or along mounting channels.
• Constructed from corrosion resistant
304 stainless steel, not for use in a
marine salt water environment.
• 316 stainless steel now available for
marine and other harsh environments.
• SunRunner Vidrio™ is designed to
mount directly onto the glass panel
with compression force only. Will not
harm the glass surface, and the black
color meets many HOA requirements!
• The TPE coating on the SunRunner
Vidrio™ provides an electrically
insulated surface.
• SunRunner EZ’s are designed for
thicker module frames as well as
racking – accommodates profiles up to
.250 ̋ (6,4 mm) thick
