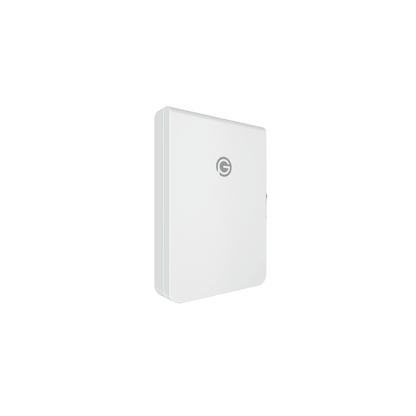

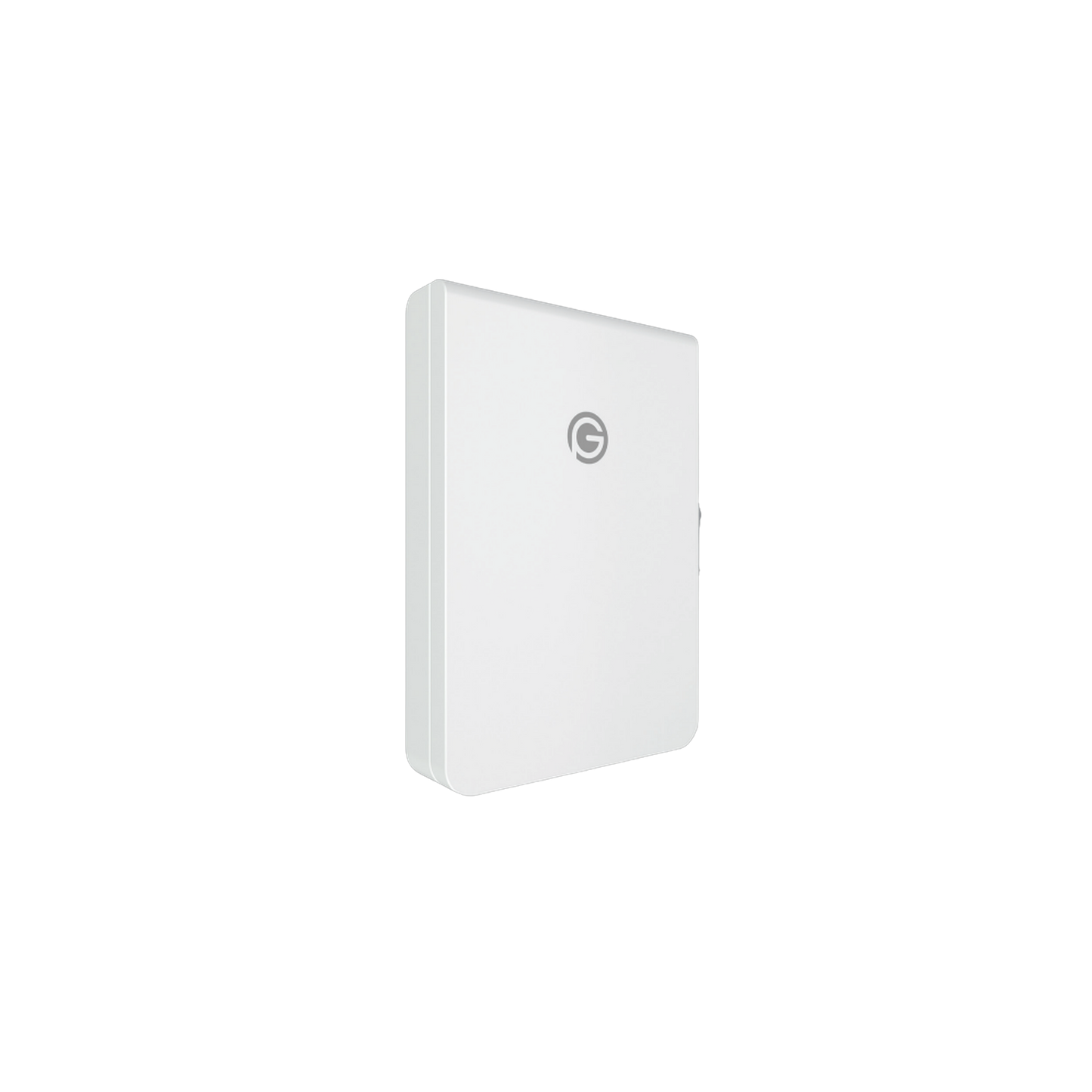

LOAD HUB2

PointGuard LoadHub is capable of connecting up to two PointGuard Home systems at once. There are six double-pole (or 12 single-pole) controllable breaker positions reserved for large loads such as pool pumps or central air conditioners, including one position for a generator. Select and prioritize what you want to backup. Monitor and control your home energy usage.
• 6 double-pole controllable loads
• 0 ms load-side disruption when switching to backup mode
• Supports generator, heat pump or other controllable load
• Supports both whole-home & partial-home backup
• Uninterrupted power supply through PV+ESS/grid/generator
Grid Connection

Max. AC main circuit breaker rated current 200 A
Nominal AC output voltage 120 / 240 V

AC Output to Main Distribution Panel

Overvoltage category III


PG Controller Connection

Max. no. of connection 2
Max. AC cuicirt breaker rated current 60 A
Max. AC nominal power per inverter connection 14.4 kW


Smart Load Port Connection

Max. no. of connection 5
Max. continuous input/output current 80 A
Shipping Dimension
1 Pallet (8 Boxes/8 Pieces) = 34x48x43 @ 535 lbs
1 Box (1 Piece) = 24x33x10 @ 64 lbs
1 Box = 1 Piece
