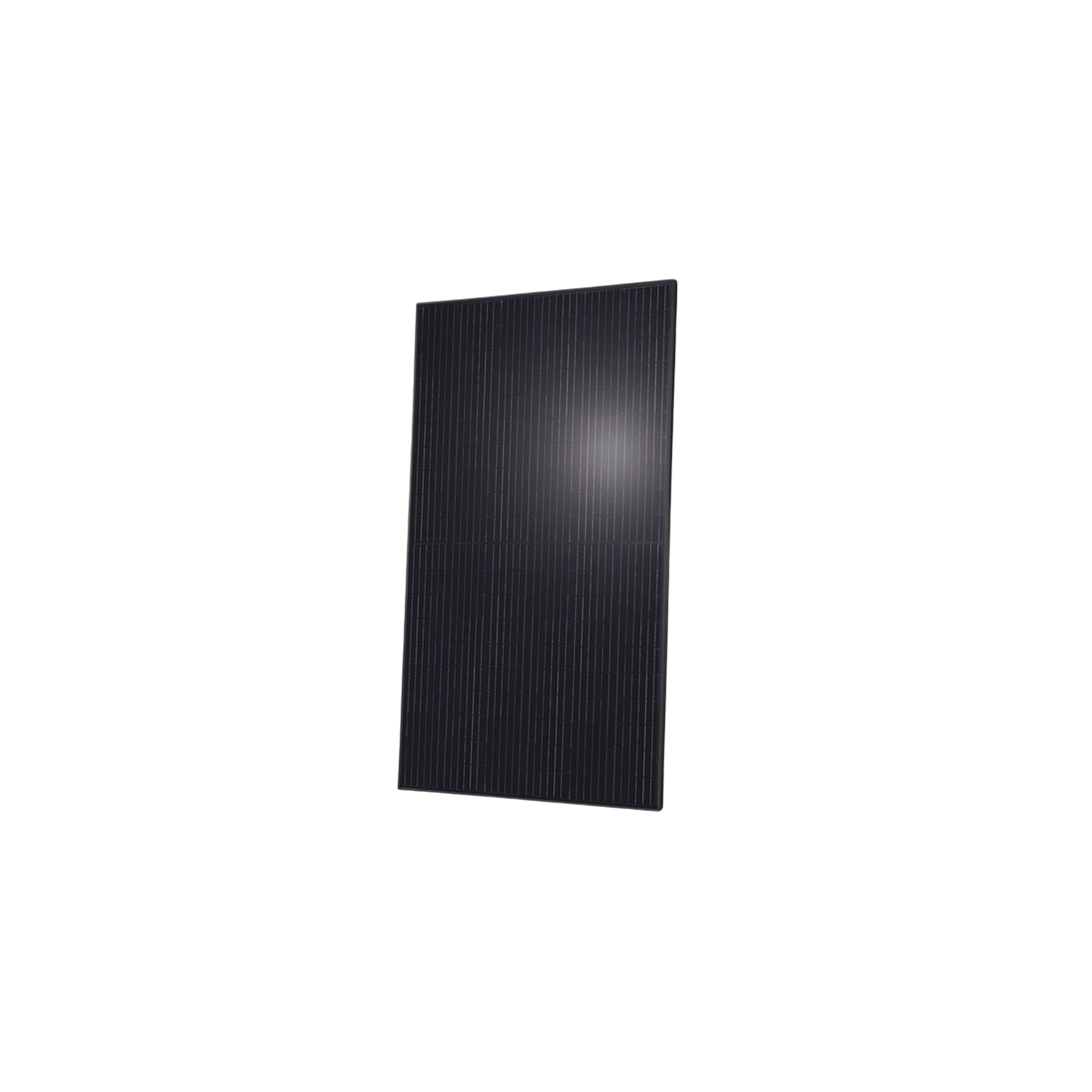

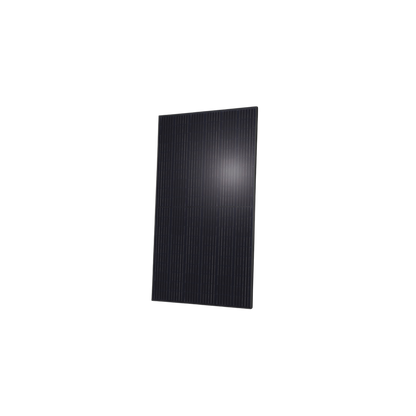

410W Q.PEAK DUO BLK ML-G10+ 410

The Q.PEAK DUO ML-G10+ 410 features cells powered by zero-gap Q.ANTUM DUO Z Technology, offering higher module power density. By eliminating the gaps between cells, module efficiency is increased in relative terms by 4%, delivering an overall efficiency of 20.9%. There are 132 half-cells contained within the module. The module is also backed by a 25-year product and performance warranty that guarantees at least 86% of the initial power after 25 years.

The newest, high-performance Q.ANTUM DUO Z solar module Q.PEAK DUO ML-G10+ 410 is the ideal solution for rooftop arrays on residential buildings thanks to a combination of the innovative cell technology Q.ANTUM DUO Z and cutting edge cell interconnection. Only Q CELLS offers German engineering quality combined with long-term yield security using Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™.

Q.ANTUM DUO Z Technology reduces both electrical and optical losses by halving the current passing through each cell while making use of incident light more effectively. Q CELLS decided to focus on all of the key determinants of performance, not just the ones that make their data sheets look good. By enhancing low-light performance and also the output of the modules across a range of temperatures, you will be sure to achieve higher profits.

Features
NEARING THE 21% EFFICIENCY BARRIER

Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency of 20.9%.
THE MOST THOROUGH TESTING PROGRAM IN THE INDUSTRY

Q CELLS is the first solar module manufacturer to pass the most comprehensive quality program in the industry: The new “Quality Controlled PV” of the independent certification institute TÜV Rheinland.
INNOVATIVE ALL-WEATHER TECHNOLOGY

Optimal yields, whatever the weather with excellent low-light and temperature behavior.
ENDURING HIGH PERFORMANCE

Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™. (APT test conditions according to IEC / TS 62804-1:2015, method A: −1500 V, 96 h)
EXTREME WEATHER RATING

High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa).
A RELIABLE INVESTMENT

Inclusive 25-year product warranty and 25-year linear performance warranty. (See data sheet for further information.)

Shipping Dimensions:
1 Piece = 74x42x1.5 @ 49 lbs
1 Pallet (32 Pieces) = 75x43x55 @ 1650 lbs
1 Container/53' Truck (24 Pallets/764 Pieces) = 40,000 lbs
